96inch Steel Nano Dustproof Smart Board Interactive Whiteboard
Specifications:
| Touch technology |
Infrared multi touch technology |
| Touch model |
10 touch points |
| Induction object |
Finger, pen, any opaque objects |
| Size of induction |
Greater than or equal to 5 mm in diameter |
| Resolution |
32768*32768 |
| Response time |
First point 25ms consecutive points 8ms |
| Cursor speed |
≥200dots/second |
| Glass Thickness |
4mm Normal or Anti-glare tempered glass |
| Operating voltage |
DC 4.6V ~ DC 5V by USB |
| Consumption current |
<1W, current ≤ 100mA |
| Touch Activation Force |
No pressure needed |
| Service life |
>6 million times single spot touch |
| Transferring rate |
12m/s |
| Positioning accurac |
≤0.1mm |
| Droop resistant |
Yes, prevent due to long time work performance degradation |
| Certificate |
CE, FCC, ROHS, ISO 9001 |
| Warranty |
3 Years |
Featues:
›√ 30 STUDENTS AS A TEAM, INTERACTION NETWORK
›√ ONLINE TEACHING,REAL-TIME TRANSMISSION
›√ INSTANT RECORD, ANY WHERE, ANY TIME
›√ MULTI TOUCH BRING ACTIVE LEARNING ATMOSPHERE
›√ TO PROTECT ENVIRONMENT,ON-LINE EXAMINATION
›√E-LEARNING TO BREAK TRADITIONAL TEACHING

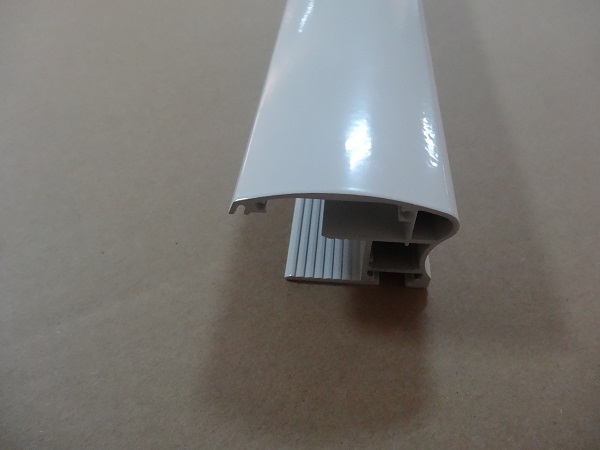

Aluminum Frame
A. Specific gravity is 1.4 kg/m. With spray technology for white color. The appearance of product is massy
and beautiful.

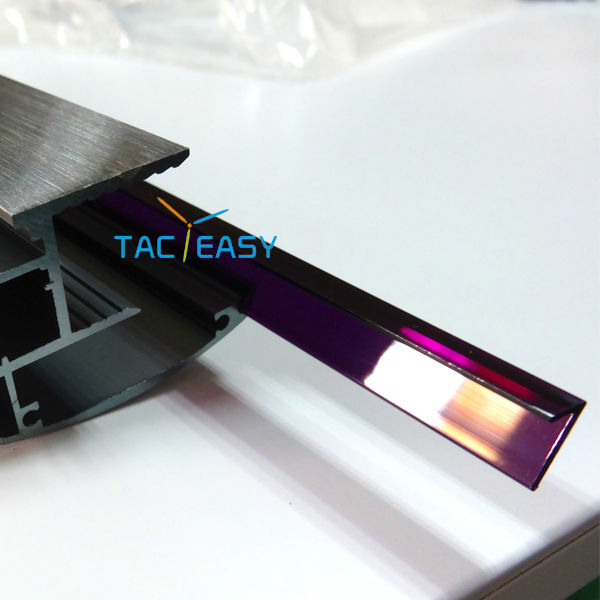

B. Specific gravity is 0.9 kg/m. With oxidation wire drawing technology for grey color,
not only has dumb light radiant with metallic luster, but also have fashion and technology elements.
Board Surface
There are three board surface can be choose from TACTEASY, no matter what kind of board surface you choose ,
the evenness and longevity can be guaranteed. Because the compact structure and stable of aluminum honeycomb core,
keep the surface smooth and long life. Support the water ink pen writing and washing.
A. Aluminum plate
Both sides are all aluminum plate. Front side and back side thickness are all 0.8 mm. The weight is the lightest.
B. Steel plate
Both sides are all steel plate. Front side and back side thickness are all 0.8 mm. The weight is relatively heavier.
C. Ceramic board
The front side is 0.4mm enamel plate, back side is 0.4mm steel plate. The weight is heavier but the ceramic surface
has higher hardness. Even sharp blade can’t damage the surface. However, the Cost is highest.
Infrared filter
TACTESY’s infrared filter use special anti-interference material. This material only allows infrared light to transmit
and other lights should be blocked. In this way infrared signal can be kept, increase the anti-interference ability.
Besides Poly Carbonate material is adopted to have higher tenacity. It is difficult to be broken and transparent surface
make the infrared led invisible. Which makes the product looks better.
Interactive software
›The interactive software incorporates drawing tools and shapes for meetings, presentations and teaching, so that
you can draw on surface by fingers, annotate live websites and save your work for reference etc.
Support to interact between Window and Android.
